Do other things with APIs

️✅ Learning objectives

• Create new content through an API.
• Update existing content through an API.
• Delete existing content through an API.
• Perform multiple API requests.
• Learn more about making API requests with {httr2}.

library(httr2)
library(keyring)
library(here)
library(curl)
library(jsonlite)
library(dplyr)
library(tibble)
library(tidyr)
library(purrr)
library(glue)

• Might merge “perform multiple” into “learn more.”
• Learn more: {httr2} is 1.0 (which means it’s relatively stable), but they’re continuing to improve it.
  • So the documentation, issues, and PR threads are very useful!

Do more than GET

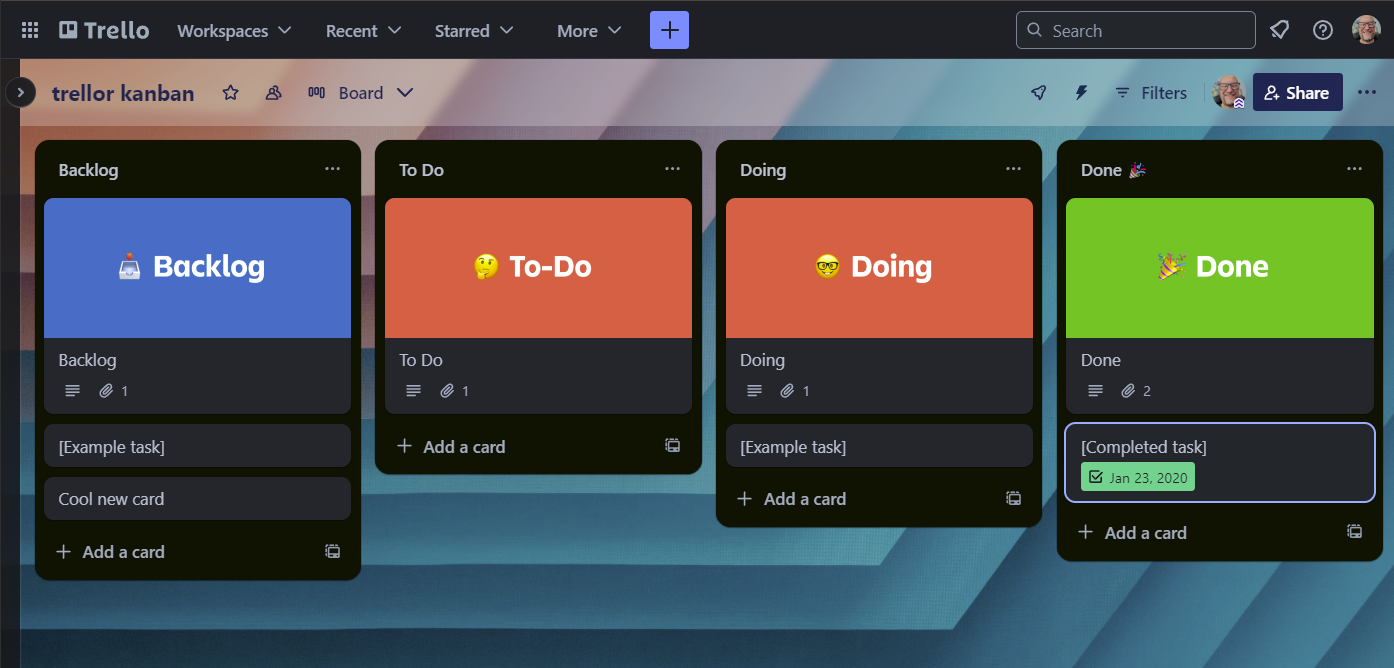

Motivating Example: Trello

Trello = Project Management Tool

• One way to use Trello is to track cards moving through statuses on a board
• I’m using this API as one of my test cases for {beekeeper} - Watch for {trellor} on CRAN.
• We’ll create a card, update its status, and then delete it.

What are the pieces of an HTTP request?

HTTP request = URL + headers + method + body

• We’ve been making HTTP requests all along, but haven’t dug into all the details about them.
• We’ve done a lot with URL & headers (authentication, user-agent)
  • Technically the URL is a header (“Host”), if anybody wants to be pedantic.
• Today we’ll look at method & body
  • Starting with body.

What is a request body?

Body = data sent in request

• req_body_json() = most common
• req_body_multipart() = mixed
  • curl::form_file() to indicate file paths
• req_body_file()
• req_body_form() = special format for HTML forms
• req_body_raw()

httr2::req_body_json(req, data, {jsonlite::toJSON args})

• Body often bigger than query params, somewhat more secure (like header).
• You’ll probably use req_body_json() almost always (when body needed).
• req_body_multipart() somewhat common for file + info about the file.
  • Need to tell it which part is a path to a file, which part is info to send as text.
• req_body_file() somewhat rare because API usually wants additional info.

What are HTTP request methods?

Formally:

• Paths are nouns
• Methods are verbs
  • GET (fetch existing thing)
  • POST (send new thing)
  • PATCH (change existing thing)
  • PUT (replace existing thing)
  • DELETE (delete existing thing)
  • CONNECT, OPTIONS, HEAD, TRACE (very rare)

• We’ve technically been talking about “REST” APIs
  • “Representational State Transfer”
  • We’ll see other frameworks in a later chapter.
• Path examples (trello): cards, boards, members (+each w/ id)
• We’ve been doing GET by default
• CONNECT = “start 2-way communication” (eg ask server to be a bridge)
• OPTIONS should tell you method options
• HEAD returns headers that you’d get with GET
  • Eg, use it to check if DL would be big.
• TRACE returns the request as the final server received it, with header info about route.
• Methods aren’t strict
  • API owner can do weird things.
  • GET or POST often used for ~everything
  • PATCH and PUT used interchangeably

How do I specify a method?

• GET = default without body
• POST = default with body
• req_method() to specify (rarely needed)

httr2::req_method(req, method)

• Many APIs use only GET and/or POST.
• Technically GET can have a body, and technically POST can lack one.
• Always need to specify for other methods like DELETE.
• Doesn’t hurt to specify to be sure.

Live Example

Trello background

• API docs
• API description
• Somewhat weird auth:
  • OAuth 1!
  • “API key” ≈ OAuth client ID
  • “Token” ≈ OAuth token (but can manually generate one)
• 6dkXRHRK = board ID from URL

• I didn’t know anybody still used OAuth 1! Everything we’ve seen has been Oauth2
• We need both Key and Token for each request!
• Reminder: All the specifications are guidelines, people can and do mess them up!

Baseline Trello request

cache_path <- here::here("slides/other/cache")
trello_req <- httr2::request("https://trello.com/1") |>
  .req_ua() |>
  httr2::req_url_query(
    key = keyring::key_get("TRELLO_KEY"),
    token = keyring::key_get("TRELLO_TOKEN")
  ) |>
  httr2::req_cache(cache_path) |>
  httr2::req_retry(max_tries = 3)

• .req_ua() calls httr2::req_user_agent() with my defaults
• I saved the key and token to my keyring per previous chapter
• Throwing in a cache here; I didn’t go over this (might in book), but it saves results to specified directory, loads from there if exists

Get Trello board info

board_lists <- trello_req |>
  httr2::req_url_path_append("boards/6dkXRHRK/lists") |>
  httr2::req_perform() |>
  httr2::resp_body_json()
board_lists |> purrr::map_chr("name")

Create a Trello card

new_card <- list(
  idBoard = "6dkXRHRK",
  idList = board_lists[[1]]$id,
  name = "*** Newly Created Card ***",
  desc = "This card was created as a book club demo."
)

new_card_response <- trello_req |>
  httr2::req_url_path_append("cards") |>
  httr2::req_body_json(data = new_card) |>
  httr2::req_perform() |>
  httr2::resp_body_json()

• Response is info about the card, importantly including the id.

Move the Trello card

move_card_response <- trello_req |>
  httr2::req_url_path_append("cards", new_card_response$id) |>
  httr2::req_body_json(data = list(idList = board_lists[[2]]$id)) |>
  httr2::req_method("put") |>
  httr2::req_perform() |>
  httr2::resp_body_json()

move_card_response2 <- trello_req |>
  httr2::req_url_path_append("cards", new_card_response$id) |>
  httr2::req_body_json(data = list(idList = board_lists[[3]]$id)) |>
  httr2::req_method("put") |>
  httr2::req_perform() |>
  httr2::resp_body_json()

• SHOW THE BOARD BEFORE EXECUTING CODE
• This really SHOULD be PATCH, since we aren’t REPLACING the data, just updating.

Delete the card

delete_card_response <- trello_req |>
  httr2::req_url_path_append("cards", new_card_response$id) |>
  httr2::req_method("delete") |>
  httr2::req_perform() |>
  httr2::resp_body_json()

Multiple requests

Motivating example: Trello cards as data

cards <- tibble::tibble(
  name = glue::glue("*** Sample card for {state.abb} ***"),
  desc = glue::glue("A card to do something for {state.name}.")
)
cards

#> # A tibble: 50 × 2
#>    name                       desc
#>    <glue>                     <glue>
#>  1 *** Sample card for AL *** A card to do something for Alabama.
#>  2 *** Sample card for AK *** A card to do something for Alaska.
#>  3 *** Sample card for AZ *** A card to do something for Arizona.
#>  4 *** Sample card for AR *** A card to do something for Arkansas.
#>  5 *** Sample card for CA *** A card to do something for California.
#>  6 *** Sample card for CO *** A card to do something for Colorado.
#>  7 *** Sample card for CT *** A card to do something for Connecticut.
#>  8 *** Sample card for DE *** A card to do something for Delaware.
#>  9 *** Sample card for FL *** A card to do something for Florida.
#> 10 *** Sample card for GA *** A card to do something for Georgia.
#> # ℹ 40 more rows

• This is a quick dummy example, but I’m hoping people can see how a real version of this would make sense.

Create multiple cards

card_creation_requests <- purrr::pmap(
  cards,
  \(name, desc) {
    new_card <- list(
      idBoard = "6dkXRHRK",
      idList = board_lists[[1]]$id,
      name = name,
      desc = desc
    )
    trello_req |>
      httr2::req_url_path_append("cards") |>
      httr2::req_body_json(data = new_card)
  }
)

card_creation_responses <- card_creation_requests |>
  httr2::req_perform_sequential() |>
  httr2::resps_data(
    \(resp) {
      tibble::tibble(data = list(httr2::resp_body_json(resp))) |>
        tidyr::unnest_wider(data)
    }
)

Delete multiple cards

card_deletion_responses <- card_creation_responses$id |>
  purrr::map(
    \(card_id) {
      trello_req |>
        httr2::req_url_path_append("cards", card_id) |>
        httr2::req_method("delete")
    }
  ) |>
  httr2::req_perform_parallel()

Learn more about {httr2}

• pkgdown site
• GitHub issues
• GitHub PRs
• Some notable functions:
  • req_template(), curl_translate()
  • req_throttle(), req_timeout(), req_progress()
  • req_perform_stream()
  • req_options()

• No point in me replicating all of the docs.
• It’s 1.0.0+/“stable,” but they’re still improving things.

Chapter To-Do

• Review existing slides.
• Update LOs.
• Write exercises.
• Write exercise solutions.
• Finalize LOs.
• Add slide(s) per exercise.
  • Link to relevant content slide(s) from exercise slides.
• Update content slides.
• Write speaker-note questions to ask cohort.
